Hydraulic Motor

Bohang Hydraulic supplies ISO-certified hydraulic motors for mobile machinery, construction equipment and industrial drive systems. The product range covers fixed and variable displacement designs, providing stable torque output, efficient power transmission and precise speed control for both open and closed hydraulic circuits.

Designed for high-pressure working conditions, Bohang hydraulic motors feature compact construction, high power density and long service life, with pressure ratings up to 450 bar. Standard ISO mounting supports reliable system integration, while Bohang’s manufacturing capability, quality testing and technical support help customers select suitable motor solutions for replacement, repair and OEM applications.

A2FM Series | Fixed Displacement Axial Piston Motor

Bent axis fixed motor for open and closed circuits
Displacement: 5 to 1000 cm³/rev.
Pressure: 400 bar nominal / 450 bar peak (Size 10 to 200).
Mounting: Standard ISO (ISO 3019-2) or SAE (SAE J744) mounting flange and ports.

View Detail
A6VM Series | Variable Displacement Axial Piston Motor

Bent axis variable motor for open and closed circuits
Displacement: 5 to 1000 cm³/rev.
Pressure: 400 bar nominal / 450 bar peak.
Mounting: Standard ISO (ISO 3019-2) or SAE (SAE J744) mounting flange and ports.

View Detail

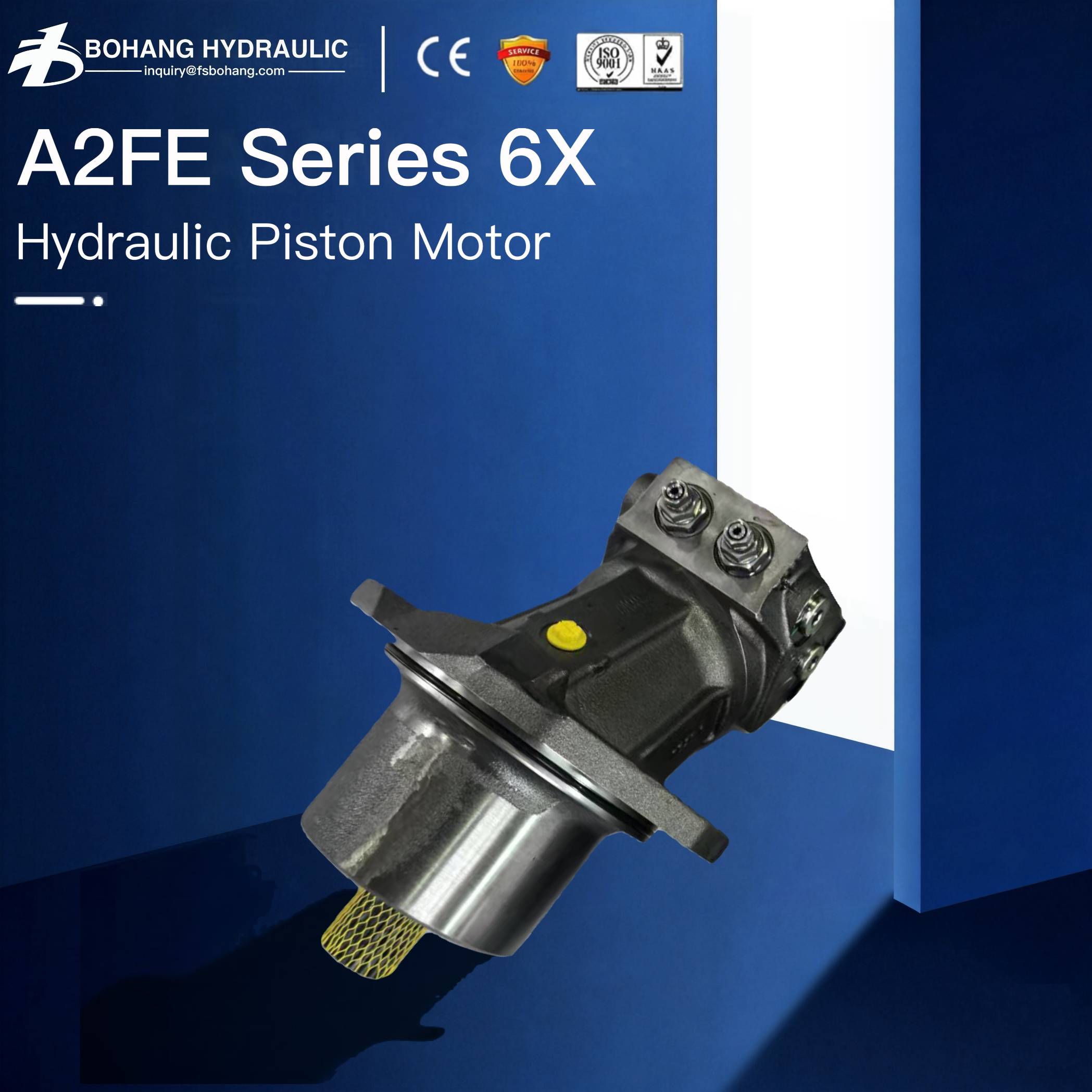

A2FE Series 6x Replacement Axial Piston Fixed Motor

Bent axis fixed motor for open and closed circuits
Displacement: 5 to 1000 cm³/rev.
Pressure: 400 bar nominal / 450 bar peak (Sizes 10 to 200).
Mounting: Standard ISO (ISO 3019-2) or SAE (SAE J744) mounting flange and ports.

View Detail
A4FM Replacement Axial Piston Fixed Motor

Swashplate variable motor for closed circuits
Displacement: 10 to 71 cm³/rev.
Pressure: 400 bar nominal / 450 bar peak.
Mounting: Standard SAE ports and SAE mounting flange.

View Detail

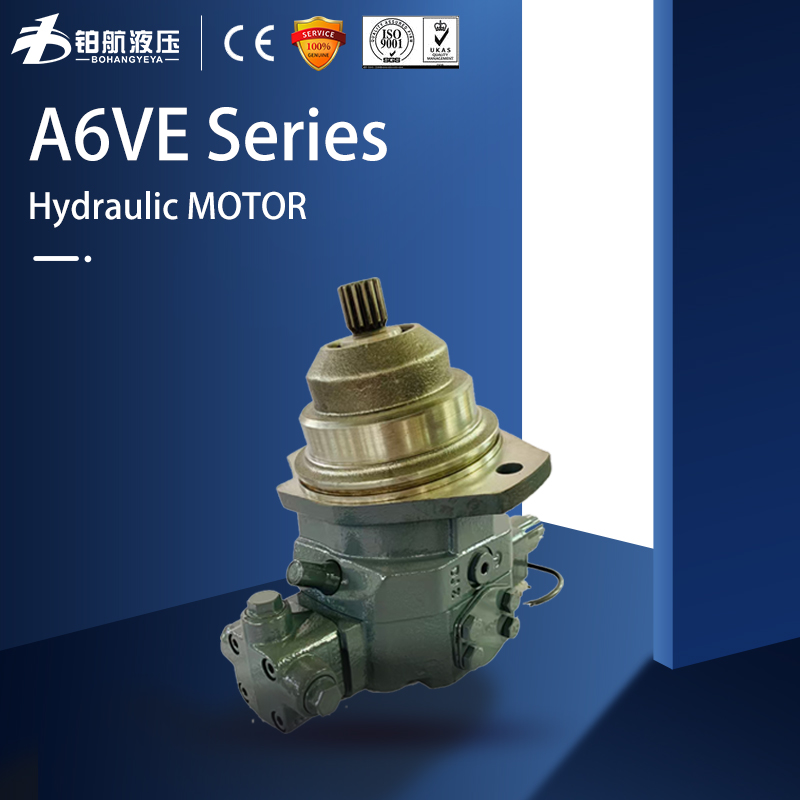

A6VE Series 6x Replacement Axial Piston Variable Motor

Bent axis variable plug-in motor for open and closed circuits
Displacement: 28 to 250 cm³/rev.
Pressure: 400 bar nominal / 450 bar peak.
Mounting: Space-saving plug-in design, ISO (ISO 3019-2) or SAE special flange options.

View Detail

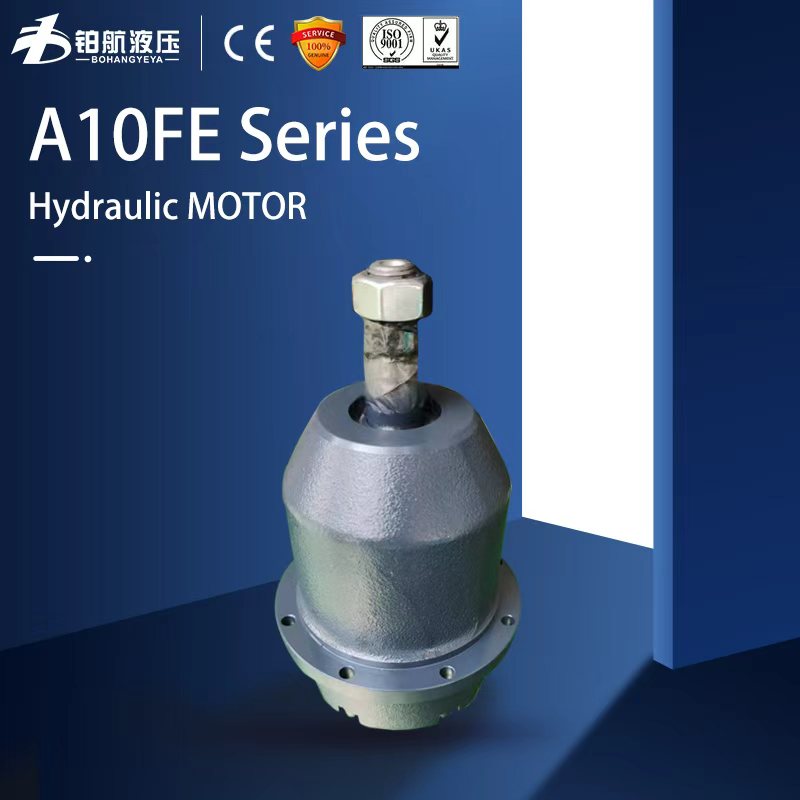

A10FE Series 52 Replacement Axial Piston Fixed Motor

Swashplate fixed plug-in motor for open and closed circuits
Displacement: 10 to 63 cm³/rev.
Pressure: 280 bar nominal / 350 bar peak.
Mounting: Space-saving plug-in design, ISO 3019-1 (SAE 2-hole) special flange options.

View Detail

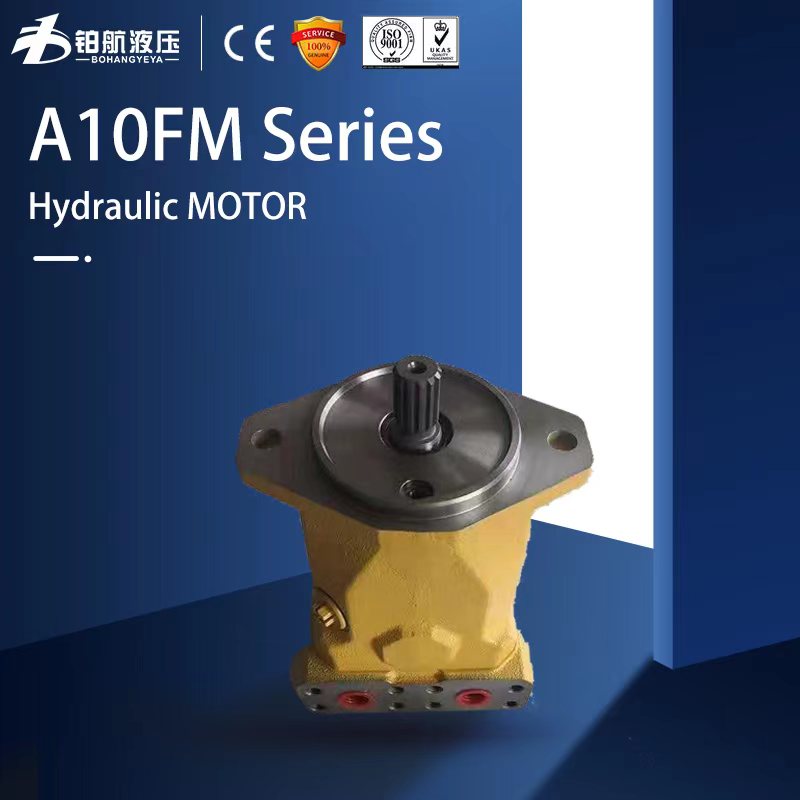

A10FM Series 52 Replacement Axial Piston Fixed Motor

Swashplate fixed motor for open and closed circuits
Displacement: 10 to 63 cm³/rev.
Pressure: 280 bar nominal / 350 bar peak.
Mounting: Standard ISO 3019-1 (SAE 2-hole) mounting flange and SAE ports.

View Detail
