Hydraulic Motor
Hydraulic Motor
A6VM Hydraulic motor rexroth
A6VM series

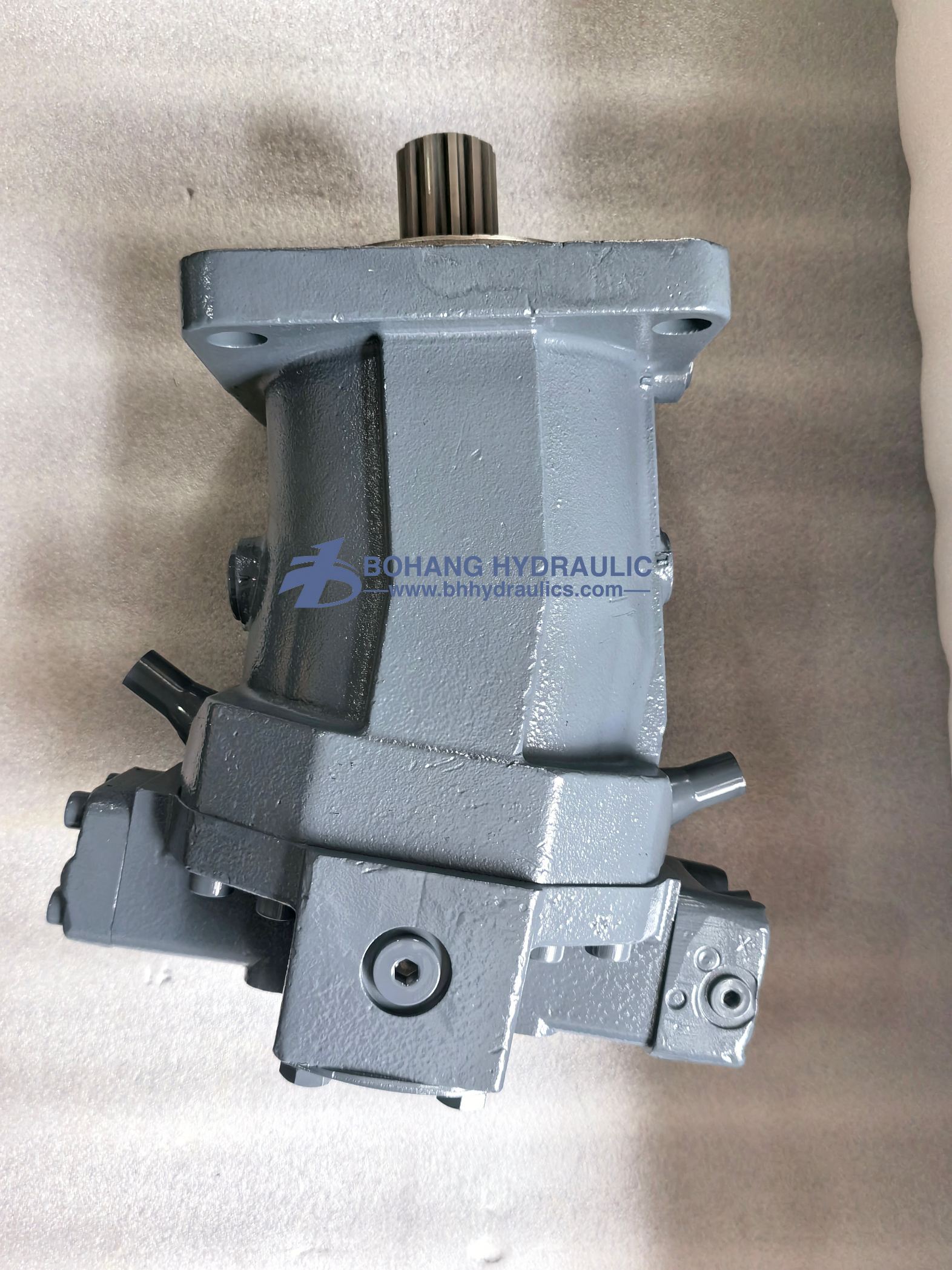

AA6VM107HD200 63WVSD520HB +HDD1 picture1

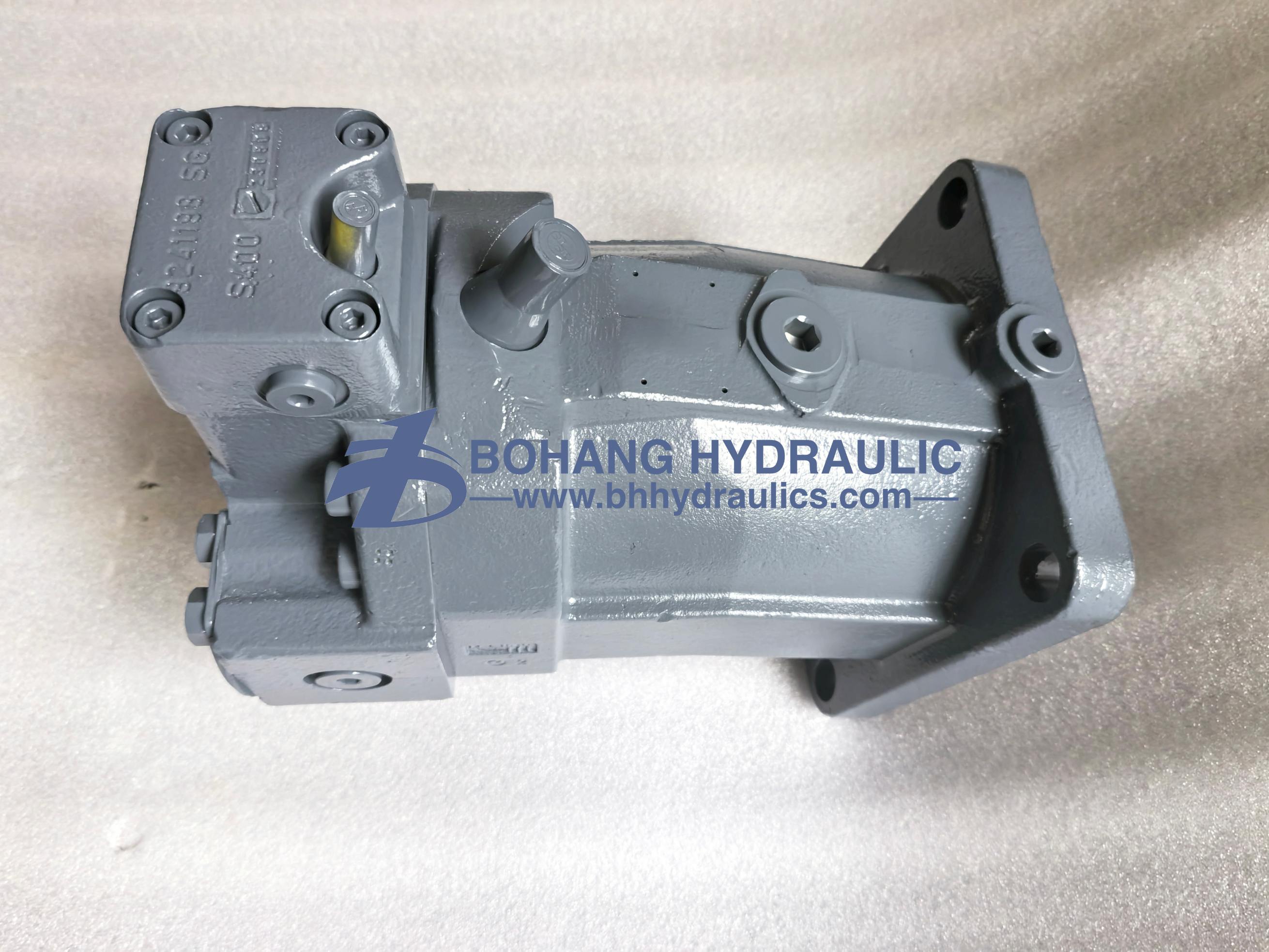

AA6VM107HD200 63WVSD520HB +HDD1 picture6

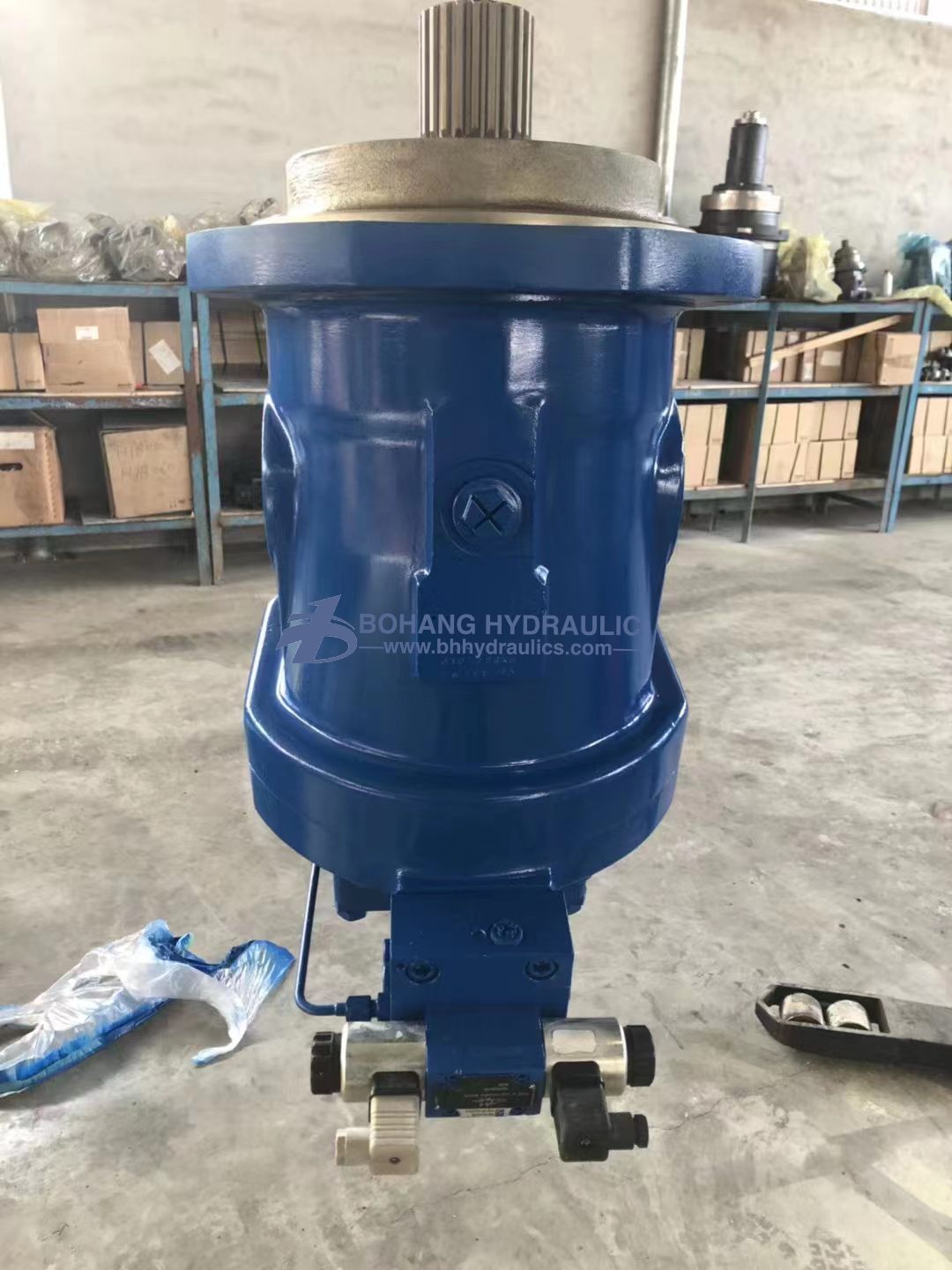

A6VM Series 6x Replacement Axial Piston Variable Motor

Features:
▶Robust motor with long service life
▶Approved forvery high rotational speedsHigh control range (can be swiveled to zero)High torque
▶Variety of controlsOptionally with flushing and boost-pressure valvemountedOptionally with integrated ormounted counterbalancevalve
▶Bent-axis design
▶ All-purpose high pressure motor
▶ Sizes 28 to 200:
Nominal pressure 400 bar
Maximum pressure 450 bar
▶ Sizes 250 to 1000:
Nominal pressure 350 bar
Maximum pressure 400 bar
▶ Open and closed circuits

Size 28 55 80 107 140 160 200 250 355 500 1000
Series 63 63 65 63 65 63 65 63 65 63 65 63 65 63 63 63 63
Displacement   Vg max cm³ 28.1 54.8 54.8 80 80 107 107 140 140 1260 1260 200 200 250 355 500 1000
Vg x cm³ 18 35 35 51 51 68 68 88 88 61 61 76 76 205 300 417 1000
Vg min cm³ 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Nominal pressure   pnom bar 400 400 400 400 400 400 400 400 400 400 400 400 400 350 350 350 350
Maximum pressure   pmax bar 450 450 450 450 450 450 450 450 450 450 450 450 450 400 400 400 400
Maximum speed at Vg max 1) nnom rpm 5550 4450 4450 3900 3900 3550 3550 3250 3250 3100 3100 2900 2900 2700 2240 2000 1600
at Vg < Vg x nmax rpm 8750 7000 7000 6150 6150 5600 5600 5150 5150 4900 4900 4600 4600 3300 2650 2400 1600
at Vg min nmax 0 rpm 10450 8350 8350 7350 7350 6300 6300 5750 5750 5500 5500 5100 5100 3300 2650 2400 1600
Inlet flow 2) at Vg max and nnom qV nom l/min 156 244 244 312 312 380 380 455 455 496 496 580 580 675 795 1000 1600
Torque at Vg max and pnom M Nm 179 349 349 509 509 681 681 891 891 1019 1019 1273 1273 1391 1978 2785 5571
Weight (approx.)   m kg 16 28 28 36 36 46 46 61 61 62 62 78 78 100 170 210 430
  Machine Hydraulci Pump/Motor
Construction Machinery
Concrete mixer AA2FM A4VTG EATON 5423
Concrete transport pump A2FO A4VG A11V
Wet spraying machine A11V A2FM A10V
Road roller A6VE A6VM  A4VTG P2VC
Paver A6VE A6VM  P2VC P4VC
Grader A6VM  P2VC
Asphalt spreader P1V(A)O A2FM
Milling machine P1V(A)O A2FE A2FM
Crawler excavator P3VO
Wheel excavator A6V A6VM  P3VO
Loader M3VE A6VM  P2VC A10VSO A2FM
Bulldozer A6VM  P2VC
Material Handling Machinery
Crane A2FE A6V A6VM P2VC P1V(A)O A10VSO A2FM
Forklift
Drilling Rig A2FE A6VE A6VM P1V(A)O A10VSO A2FM
Heading Machine A2FE P1V(A)O
Mining Truck A10VSO
Agricultural Machinery
Tractor A6VE P2VC P4VC A10VSO
 Rice Transplanter
Combine Harvester A6VE A4VTG P2VC
Pesticide machine A6VE A4VTG P2VC A10VSO
Rice harvester A6VE A4VTG P2VC P4VC
Sugar Cane Harvester A6VE P2VC P4VC A10VSO A2FM
Municipal Machinery
Airport Equipment A6VM P2VC P1V(A)C A10VSO A2FE A2FM
Firfighting Truck A7VO P1V(A)C A10VSO
Snow Sweeper P2VC A10VSO
Aerial work platform P4VC A10VSO
Electric Power A2FE A6VE P2VC P4VC
Environmental Sanitation Vehicle
Anti Dust Vehicle
Oil And Gas Equipment
Liquid Nitrogen Pump Truck P1V(A)O
Fracturing Truck A6VM P2VC A2FO A2FM
Fracturing Blender Truck A6VM P2VC A10VSO A2FM
Coil Tubing A10VSO A2FE
Pipelayer A2FE A6VM P1V(A)O
Industrial Application
Injection molding machine
Shoe-making machine A10VSO
Metal forming machinery A7V
CNC machine tool PV A10VSO
Metallurgy and die-casting E-A4VG
Flow Machine
Reach Stacker P3VO
Heavy Forlift A6VM A4VTG A10VSO
Tire Crane A6VM
Maritime Port
Ship A6VE A6VM P1V(A)O A10VSO A2FE A2FM
Offshore platform A6VE A6VM P1V(A)O A10VSO A2FE A2FM
Wind power P1V(A)O
Dredging vessels P1V(A)O
Others
Marine Crane A 11VLO A2FM FMF  A4VG A6VM
