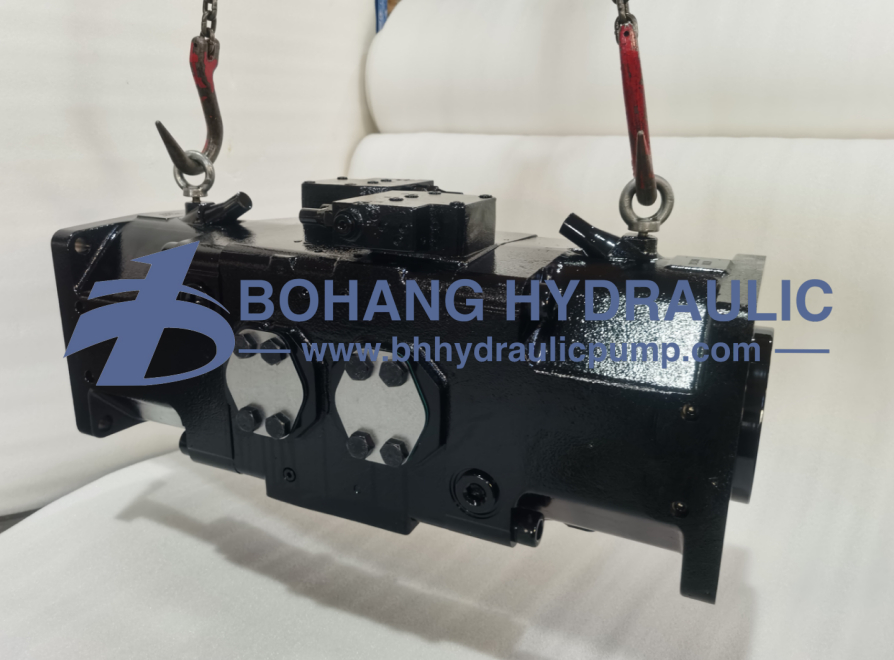

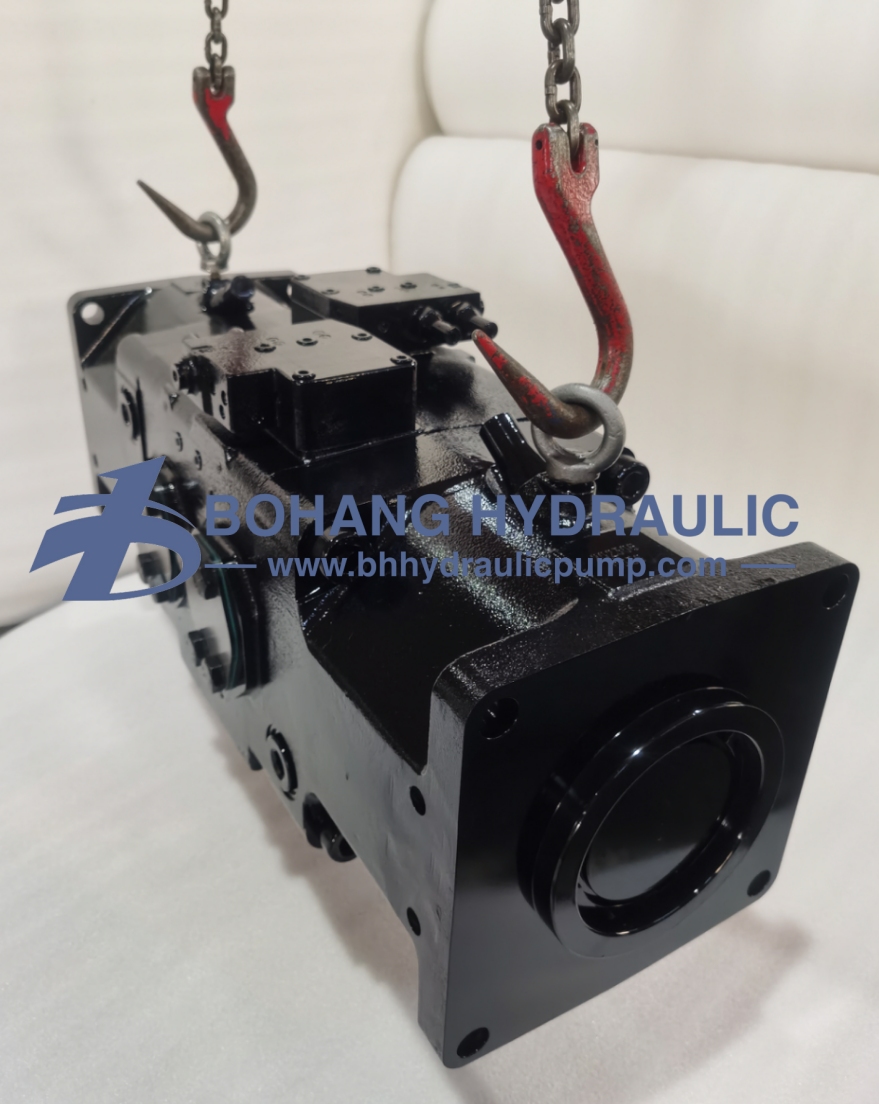

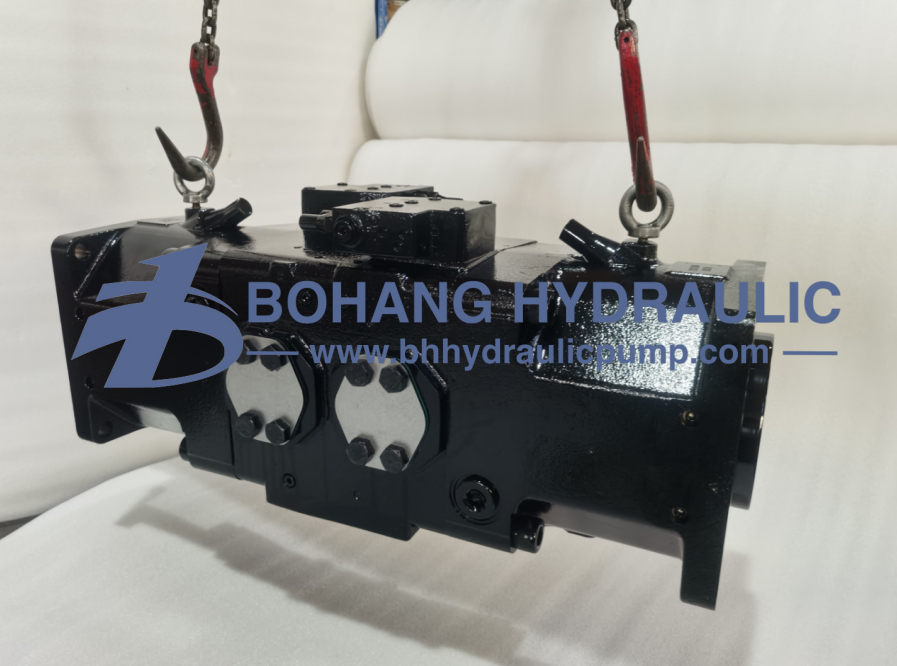

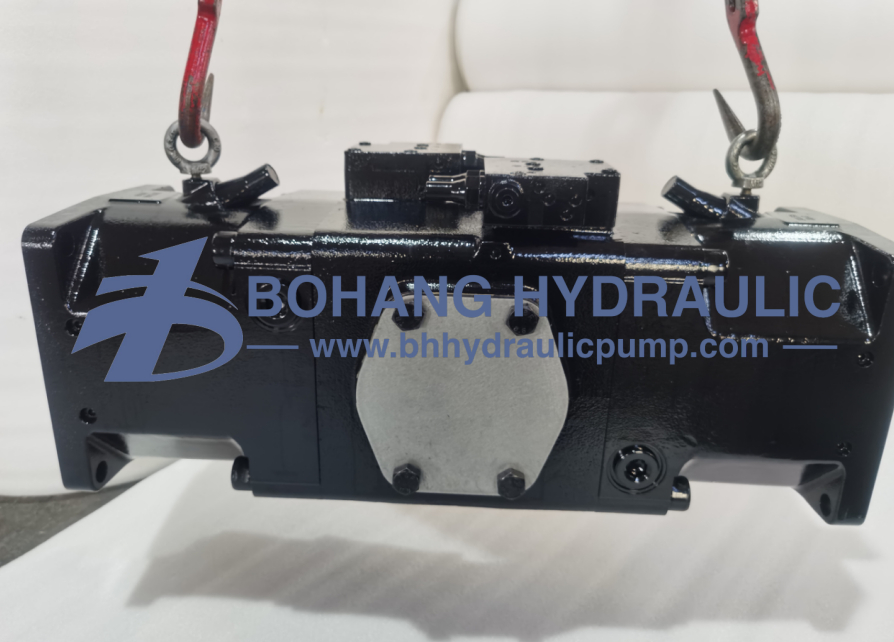

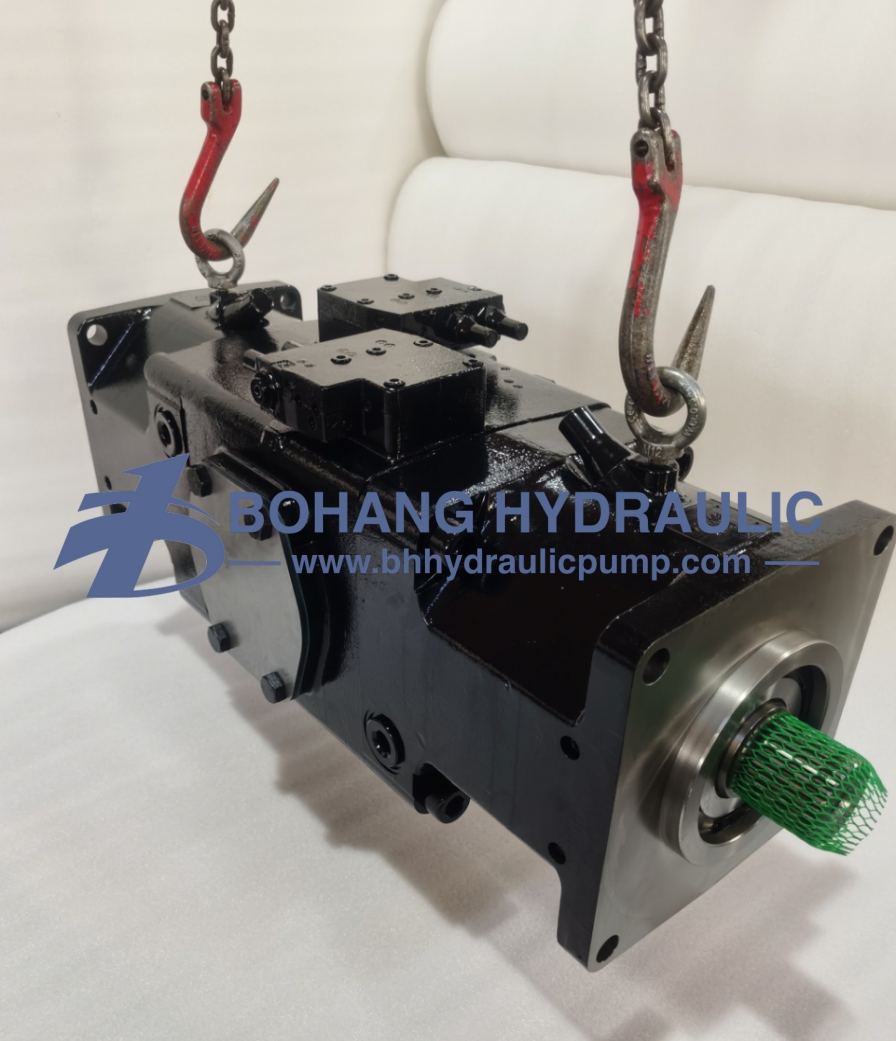

A20VLO hydraulic pump
be269bdb-09ca-4c73-9685-3d03e1849aa8
18a9a5ef-9b81-4d35-bfdc-071666bd112f
2ebbd78a-2584-4402-8663-dc1973f8362c
fa0cfe9c-3a10-4d5e-9a10-45209354bb77
8a4717fc-853b-4d2a-ae1c-559a06834c02

A20V(L)O Variable Double Pump

Features:

▶ Variable double pump with two axial piston rotary
groups with swashplate design for hydrostatic drives
in an open circuit.
▶ Flow is proportional to the drive speed and displacement.
▶ The flow can be continuously changed with closed
loop control.
▶ For use in mobile and industrial application areas.
▶ The pump consists of proven components of the A11VO
(RE 92500), A10VO/53 (RE 92703), or A4VSO
(RE 92050) variable displacement pumps.
▶ An extensive range of control devices is available in
the respective data sheets for different control and
regulating functions.
▶ Pump operation can be self-priming, with a priming
reservoir, or with a charge pump (NG 190 and 260).
▶ Power setting is possible from the outside, even while
the machine is running (only with power controller).
▶ The through drive is suitable for mounting gear pumps
and axial piston pumps.                                                                                 ▶ Compact back-to-back pump for machines with
multi-circuit system
▶ Size 60
- Nominal pressure 250 bar
- Maximum pressure 315 bar
▶ Sizes 95 to 520
- Nominal pressure 350 bar
- Maximum pressure 400 bar
▶ Open circuit

Size     NG   60 95 190 260 520
Displacement, geometric, per revolution Vg max cm3   60 93.8 192.7 260 520
(by rotary group) Vg min cm3   0 0 0 0 0
at Vg max2)
at Vg ≤ Vg max		 nnom rpm   2700 2350     25003)     23003) 1450
nmax rpm   31404) 27804) 2500 2300 17204)
Flow                       At nnom and Vg max qv l/min   2 x 162 2 x 220 2 x 482 2 x 598 2 x 754
Power                     at nnom, Vg max
                           and Δp = 250 bar
                           at nnom, Vg max
                           and Δp = 350 bar		 P kW   135 – – – –
P kW   – 257 562 698 880
Torque                    at Vg max
                           and Δp = 250 bar2)
                           at Vg max
                           and Δp = 350 bar2)		 Mmax Nm   477 – – – –
Mmax Nm   – 1045 2147 2897 5793
Rotary stiffness
of drive shaft
                           T		           c kNm/rad   – 199.6 346.2 686.5 1136
c kNm/rad   65.5 173.7 – – –
c kNm/rad   – – 301.9 567.1 –
Moment of inertia JTW kgm2   0.0113 0.0346 0.1127 0.1773 0.696
Maximum angular acceleration5) α rad/s²   3300 13000 6800 4800 2800
Case volume approx. V l   1.6 4.2 7.6 9.2 28
Weight (without through drive) approx.6) m kg   44 107 213 275 640
  Machine Hydraulci Pump/Motor
Construction Machinery
Concrete mixer AA2FM A4VTG EATON 5423
Concrete transport pump A2FO A4VG A11V
Wet spraying machine A11V A2FM A10V
Road roller A6VE A6VM  A4VTG P2VC
Paver A6VE A6VM  P2VC P4VC
Grader A6VM  P2VC
Asphalt spreader P1V(A)O A2FM
Milling machine P1V(A)O A2FE A2FM
Crawler excavator P3VO
Wheel excavator A6V A6VM  P3VO
Loader M3VE A6VM  P2VC A10VSO A2FM
Bulldozer A6VM  P2VC
Material Handling Machinery
Crane A2FE A6V A6VM P2VC P1V(A)O A10VSO A2FM
Forklift
Drilling Rig A2FE A6VE A6VM P1V(A)O A10VSO A2FM
Heading Machine A2FE P1V(A)O
Mining Truck A10VSO
Agricultural Machinery
Tractor A6VE P2VC P4VC A10VSO
 Rice Transplanter
Combine Harvester A6VE A4VTG P2VC
Pesticide machine A6VE A4VTG P2VC A10VSO
Rice harvester A6VE A4VTG P2VC P4VC
Sugar Cane Harvester A6VE P2VC P4VC A10VSO A2FM
Municipal Machinery
Airport Equipment A6VM P2VC P1V(A)C A10VSO A2FE A2FM
Firfighting Truck A7VO P1V(A)C A10VSO
Snow Sweeper P2VC A10VSO
Aerial work platform P4VC A10VSO
Electric Power A2FE A6VE P2VC P4VC
Environmental Sanitation Vehicle
Anti Dust Vehicle
Oil And Gas Equipment
Liquid Nitrogen Pump Truck P1V(A)O
Fracturing Truck A6VM P2VC A2FO A2FM
Fracturing Blender Truck A6VM P2VC A10VSO A2FM
Coil Tubing A10VSO A2FE
Pipelayer A2FE A6VM P1V(A)O
Industrial Application
Injection molding machine
Shoe-making machine A10VSO
Metal forming machinery A7V
CNC machine tool PV A10VSO
Metallurgy and die-casting E-A4VG
Flow Machine
Reach Stacker P3VO
Heavy Forlift A6VM A4VTG A10VSO
Tire Crane A6VM
Maritime Port
Ship A6VE A6VM P1V(A)O A10VSO A2FE A2FM
Offshore platform A6VE A6VM P1V(A)O A10VSO A2FE A2FM
Wind power P1V(A)O
Dredging vessels P1V(A)O
Others
Marine Crane A 11VLO A2FM FMF  A4VG A6VM
