A2FO Hydraulic Pump
csdv se
vesfvef
vesrver

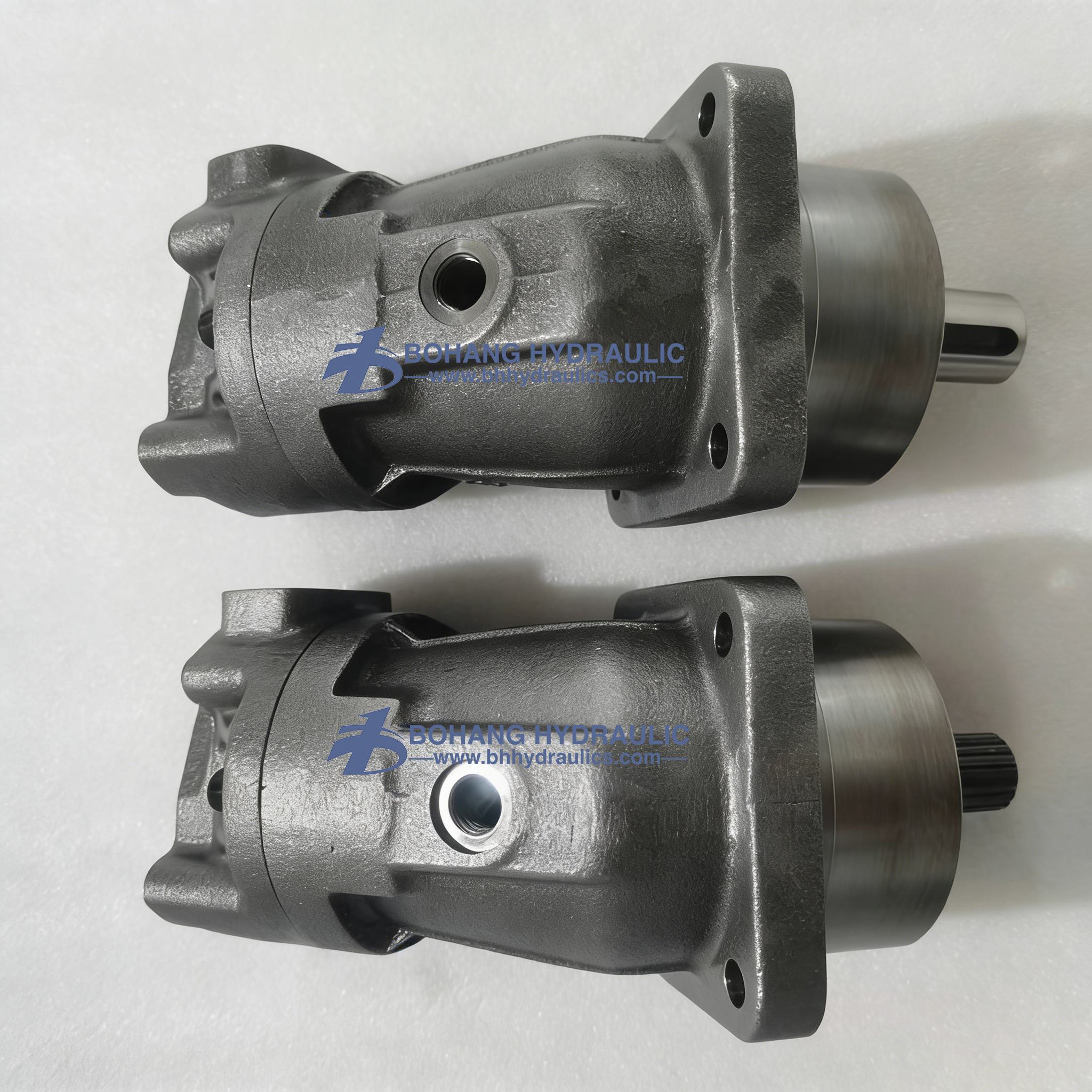

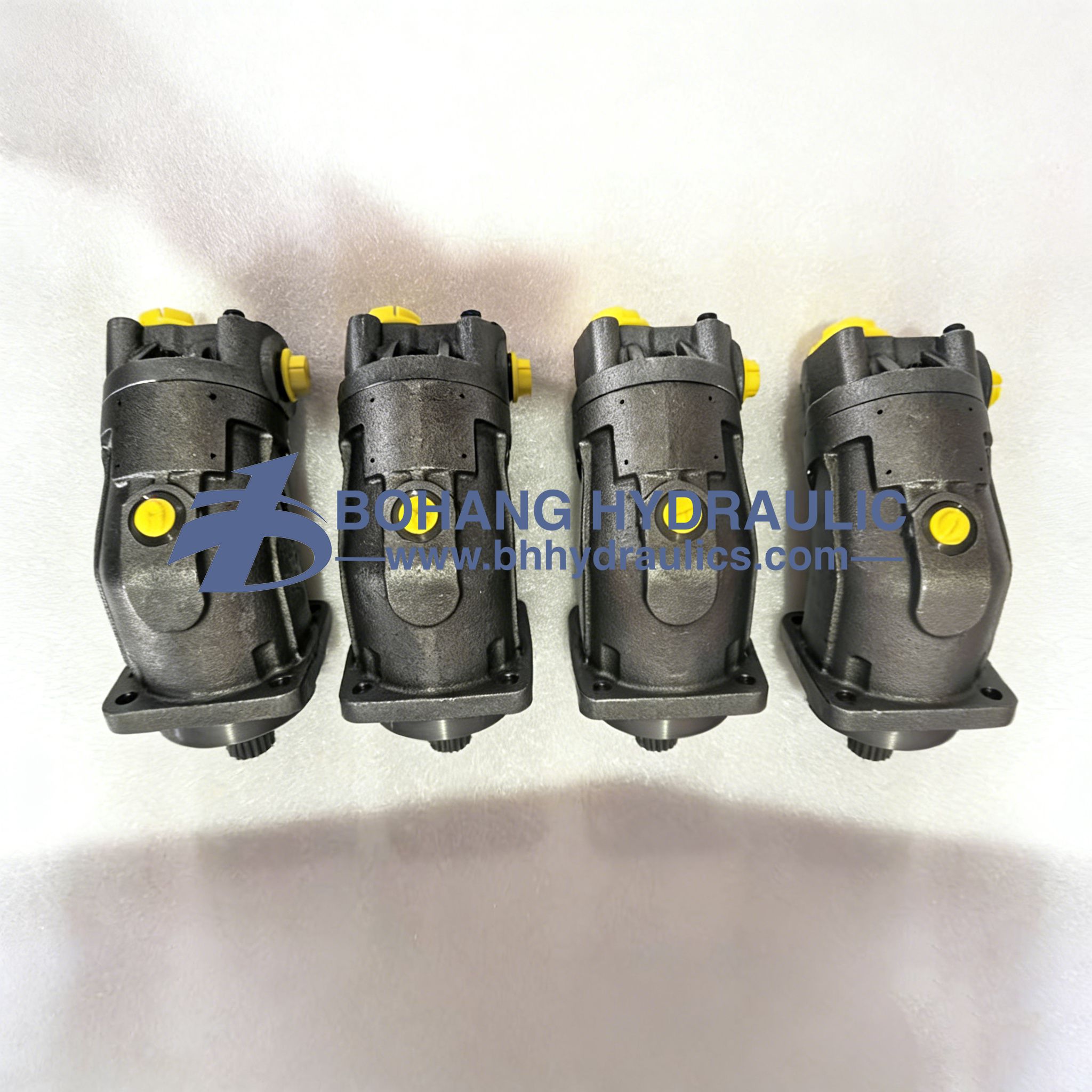

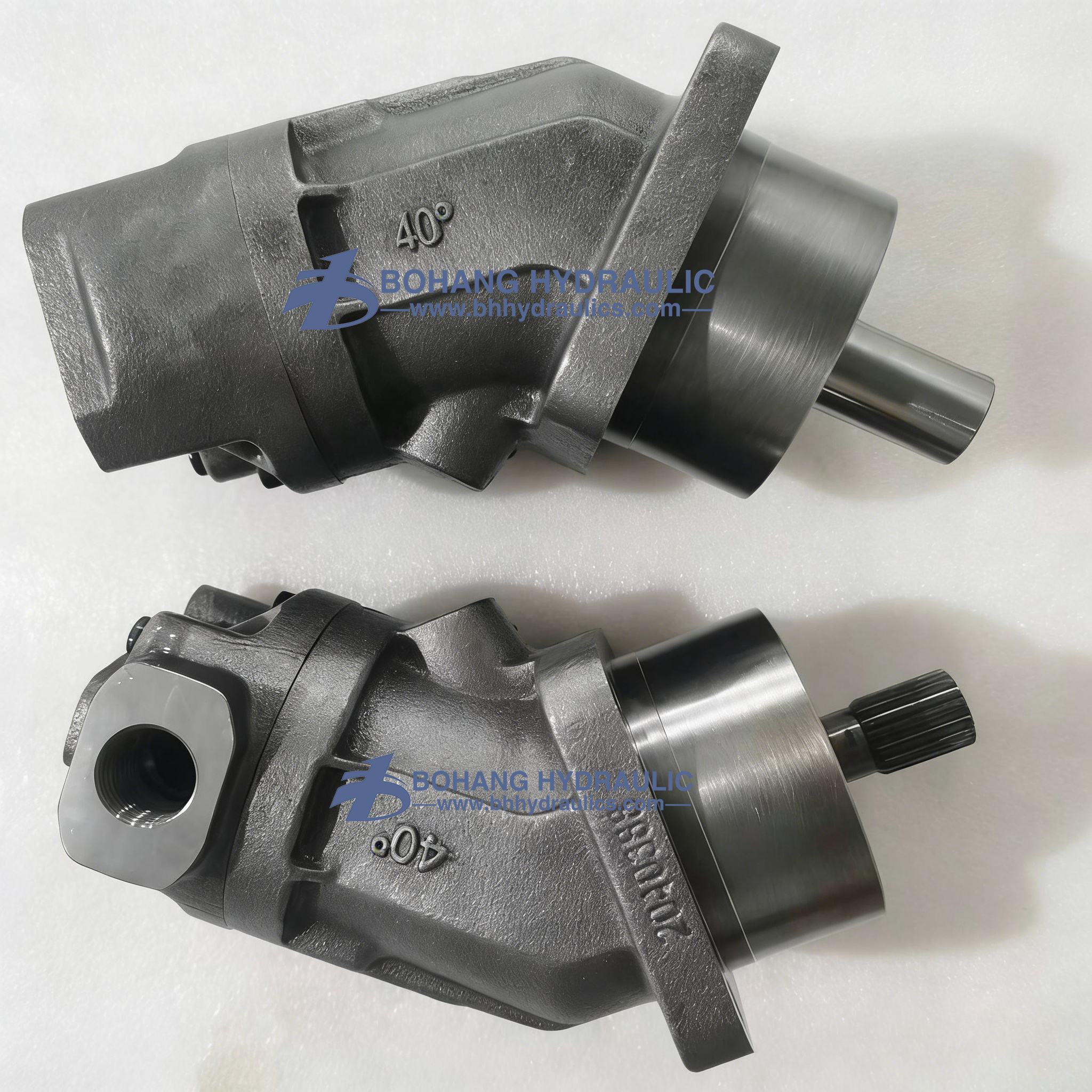

A2FO Series 6X Replacement Axial Piston Fixed Pump

Features：

▶Fixed pump with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in an open circuit
▶For use in mobile and stationary applications
▶The flow is proportional to the drive speed and displacement –The drive shaft bearings are designed for the bearing servicelife requirements usually encountered in these areas
▶High power density
▶Small dimensions
▶High total efficiency
▶Economical design
▶One-piece tapered piston with piston rings for sealing

Size 5 10 12 16 23 28 32 107 125 160 180 200 250 355 500 710 1000
Displacement   Vg max cm³ 4.93 10.3 12 16 22.9 28.1 32 106.7 125 160.4 180 200 250 355 500 710 1000
geometric, per revolution
Nominal pressure   pnom bar 315 400 400 400 400 400 400 400 400 400 400 400 350 350 350 350 350
Maximum pressure   pmax bar 350 450 450 450 450 450 450 450 450 450 450 450 400 400 400 400 400
Maximum speed nnom 1) rpm 5600 3150 3150 3150 2500 2500 2500 1600 1600 1450 1450 1550 1500 1320 1200 1200 950
nmax 2) rpm 8000 6000 6000 6000 4750 4750 4750 3000 3000 2650 2650 2750 1800 1600 1500 1500 1200
Flow at nnom qV l/min 27.6 32 38 50 57 70 80 171 200 233 261 310 375 469 600 852 950
Power at nnom and pnom P kW 14.5 22 25 34 38 47 53 114 133 155 174 207 219 273 350 497 554
Torque 3) at pnom M Nm 24.7 66 76 102 146 179 204 679 796 1021 1146 1273 1393 1978 2785 3955 5570
Rotary stiffness c kNm/rad 0.63 0.92 1.25 1.59 2.56 2.93 3.12 11.2 11.9 17.4 18.2 57.3 73.1 96.1 144 270 324
Moment of inertia for rotary group c kg·m² 0.00006 0.0004 0.0004 0.0004 0.0012 0.0012 0.0012 0.0116 0.0116 0.022 0.022 0.0353 0.061 0.102 0.178 0.55 0.55
Maximum angular acceleration ɑ rad/s² 5000 5000 5000 5000 6500 6500 6500 4500 4500 3500 3500 11000 10000 8300 5500 4300 4500
Case volume V l   0.17 0.17 0.17 0.2 0.2 0.2 0.8 0.8 1.1 1.1 2.7 2.5 3.5 4.2 8 8
Weight(approx.) m kg 2.5 6 6 6 9.5 9.5 9.5 32 32 45 45 66 73 110 155 325 336
  Machine Hydraulci Pump/Motor
Construction Machinery
Concrete mixer AA2FM A4VTG EATON 5423
Concrete transport pump A2FO A4VG A11V
Wet spraying machine A11V A2FM A10V
Road roller A6VE A6VM  A4VTG P2VC
Paver A6VE A6VM  P2VC P4VC
Grader A6VM  P2VC
Asphalt spreader P1V(A)O A2FM
Milling machine P1V(A)O A2FE A2FM
Crawler excavator P3VO
Wheel excavator A6V A6VM  P3VO
Loader M3VE A6VM  P2VC A10VSO A2FM
Bulldozer A6VM  P2VC
Material Handling Machinery
Crane A2FE A6V A6VM P2VC P1V(A)O A10VSO A2FM
Forklift
Drilling Rig A2FE A6VE A6VM P1V(A)O A10VSO A2FM
Heading Machine A2FE P1V(A)O
Mining Truck A10VSO
Agricultural Machinery
Tractor A6VE P2VC P4VC A10VSO
 Rice Transplanter
Combine Harvester A6VE A4VTG P2VC
Pesticide machine A6VE A4VTG P2VC A10VSO
Rice harvester A6VE A4VTG P2VC P4VC
Sugar Cane Harvester A6VE P2VC P4VC A10VSO A2FM
Municipal Machinery
Airport Equipment A6VM P2VC P1V(A)C A10VSO A2FE A2FM
Firfighting Truck A7VO P1V(A)C A10VSO
Snow Sweeper P2VC A10VSO
Aerial work platform P4VC A10VSO
Electric Power A2FE A6VE P2VC P4VC
Environmental Sanitation Vehicle
Anti Dust Vehicle
Oil And Gas Equipment
Liquid Nitrogen Pump Truck P1V(A)O
Fracturing Truck A6VM P2VC A2FO A2FM
Fracturing Blender Truck A6VM P2VC A10VSO A2FM
Coil Tubing A10VSO A2FE
Pipelayer A2FE A6VM P1V(A)O
Industrial Application
Injection molding machine
Shoe-making machine A10VSO
Metal forming machinery A7V
CNC machine tool PV A10VSO
Metallurgy and die-casting E-A4VG
Flow Machine
Reach Stacker P3VO
Heavy Forlift A6VM A4VTG A10VSO
Tire Crane A6VM
Maritime Port
Ship A6VE A6VM P1V(A)O A10VSO A2FE A2FM
Offshore platform A6VE A6VM P1V(A)O A10VSO A2FE A2FM
Wind power P1V(A)O
Dredging vessels P1V(A)O
Others
Marine Crane A 11VLO A2FM FMF  A4VG A6VM
