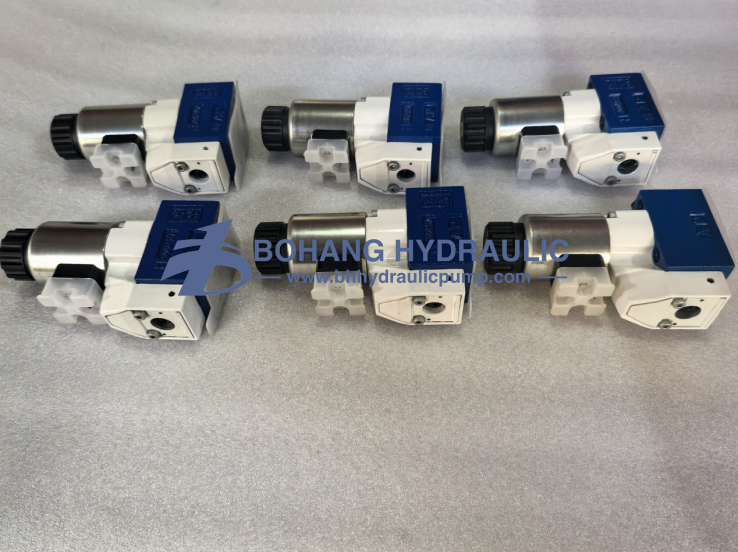

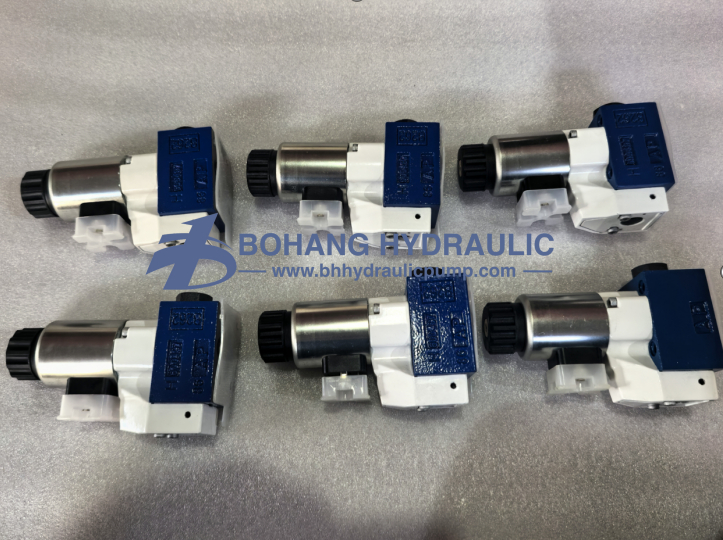

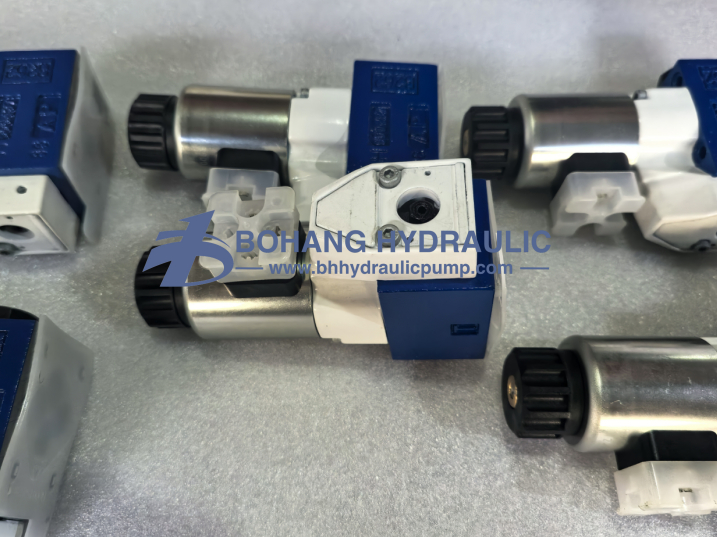

Rexroth Replacement Direct-Acting Solenoid Directional Seat Valve M-3SEW
5157b481-c4be-4dbc-8aa2-1b4c09ea3808
937c549e-e6a0-40b5-ab41-68b1490b68dc
adc8bb80-d950-4f91-b357-39c13b91bfd1

SEW Series Direct-Acting Directional Seat Valves

Features :
▶ 2/2, 3/2 or 4/2 directional design
▶ Porting pattern according to DIN 24340 form A
▶ Porting pattern according to ISO 4401-03-02-0-05 and
NFPA T3.5.1 R2-2002 D03
▶ Air-gap DC solenoids with detachable coil
▶ Solenoid coil can be rotated by 90°
▶ The coil can be changed without having to open the
pressure-tight chamber
▶ Electrical connection as individual connection
▶ Manual override, optional
▶ Inductive position switch and proximity sensors
(contactless)
▶ Size 6
▶ Component series 3X
▶ Maximum operating pressure 420/630 bar [6100/9150 psi]
▶ Maximum flow 25 l/min [6.6 gpm]

general
Weight                    – 2/2 directional seat valve
                          – 3/2 directional seat valve
                          – 4/2 directional seat valve		 kg [lbs] 1.5 [3.3]
kg [lbs] 1.5 [3.3]
kg [lbs] 2.3 [5.1]
Installation position   Any
Ambient temperature range °C [°F] –30 … +50 [–22 … +122] (NBR seals)
–20 … +50 [–4 … +122] (FKM seals)

hydraulic
Maximum operating pressure bar [psi] See performance limit on page 9
Maximum flow l/min [gpm] 25 [6.6]
Hydraulic fluid   See table below
Hydraulic fluid temperature range °C [°F] –30 … +80 [–22 … +176] (NBR seals)
–20 … +80 [–4 …+176] (FKM seals)
Viscosity range mm2/s [SUS] 2.8 … 500 [35 … 2320]
Maximum admissible degree of contamination of the
fluid - cleanliness class according to ISO 4406 (c)		 hydraulic Class 20/18/15 1)

Hydraulic fluid Classification Suitable sealing materials Standards
Mineral oils HL, HLP, HLPD, HVLP, HVLPD NBR, FKM DIN 51524
Bio-degradable                 – insoluble in water

                                   – soluble in water		 HETG NBR, FKM VDMA 24568
HEES FKM
HEPG FKM VDMA 24568
Flame-resistant                – water-free
                                   – containing water		 HFDU, HFDR FKM ISO 12922
HFC (Fuchs Hydrotherm 46M,
Petrofer Ultra Safe 620)		 NBR ISO 12922
