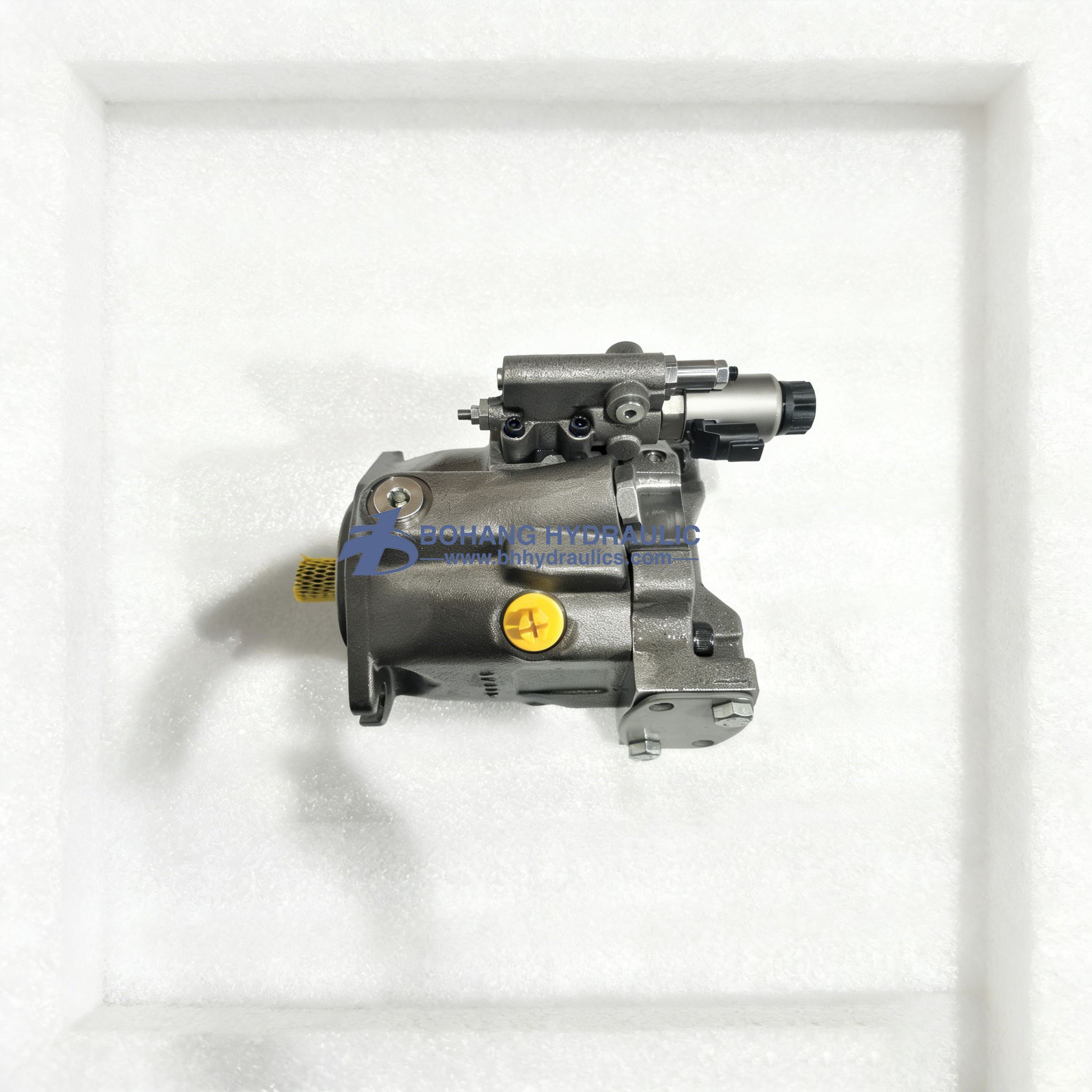

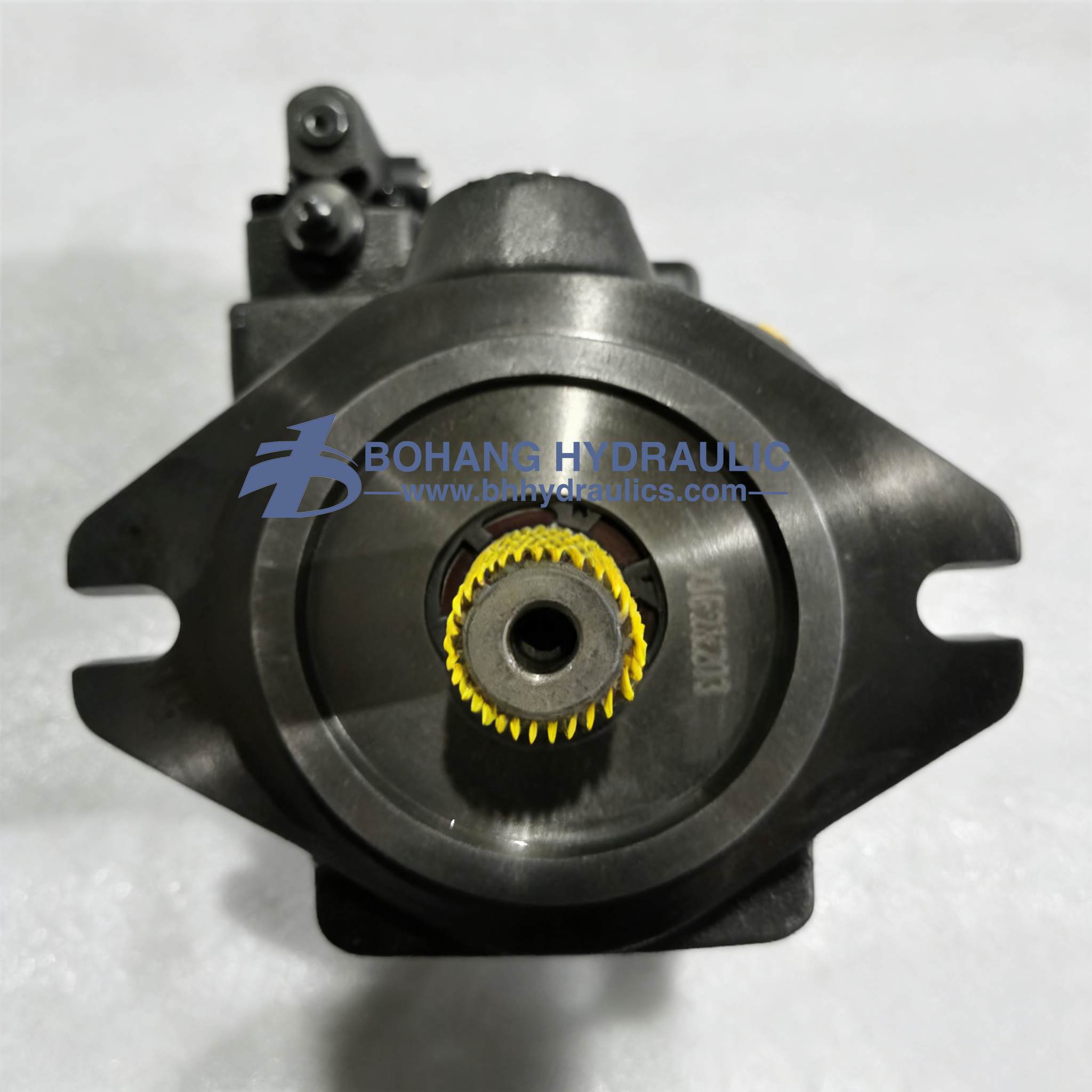

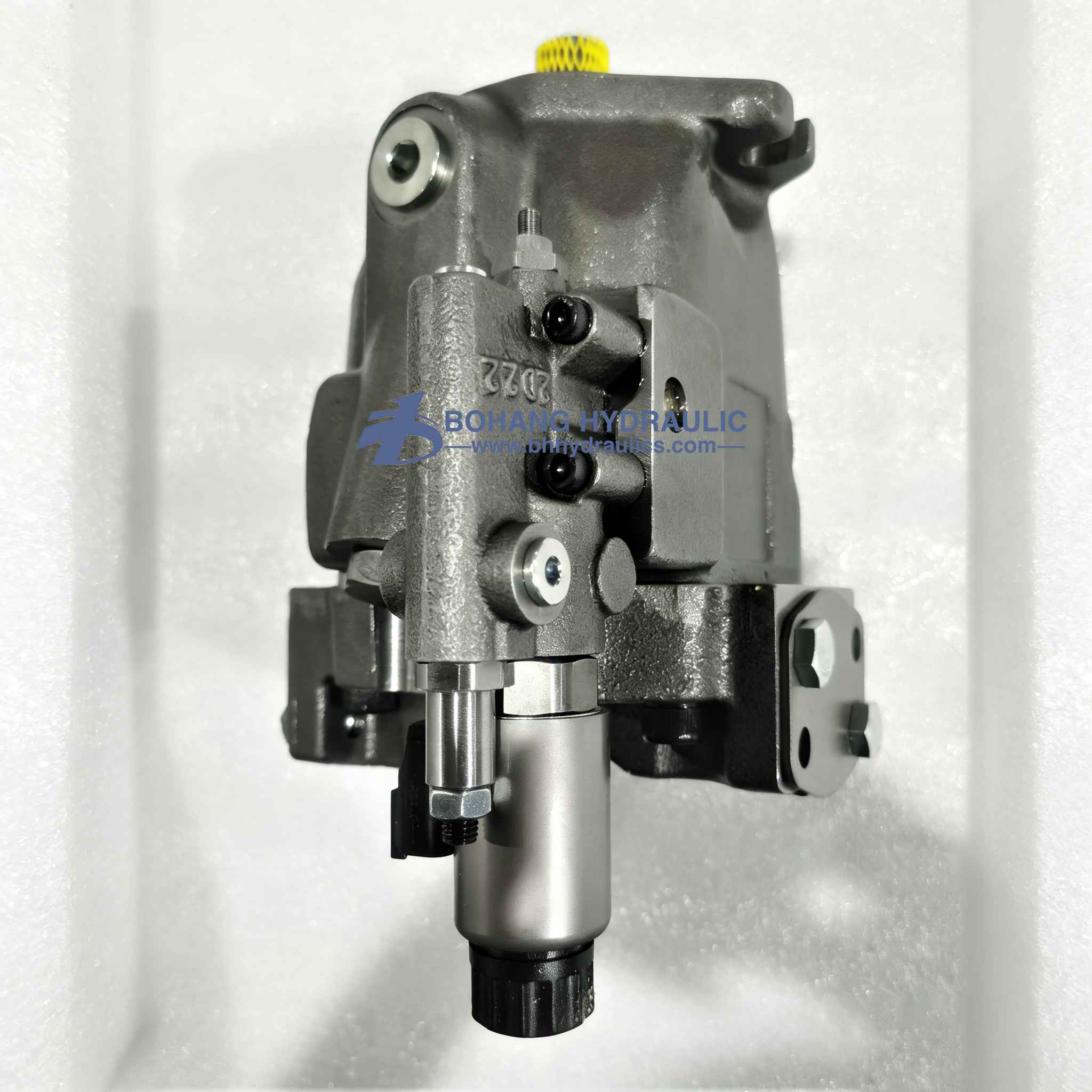

A10VO Series 5x Replacement Axial Piston Variable Pump

Features：
▶Variable pump with axial piston rotary group in swash plate design for hydrostatic drives in open circuit.
▶The fow is proportional to the drive speed and thedisplacement.
▶The fow can be infnitely varied by adjusting the swash-plate angle.
▶Stable bearing for long service life
▶High permissible drive speed
▶Favorable power-to-weight ratio – compact dimensions                                                              ▶Low noise
▶Excellent suction characteristics
▶Electro-hydraulic pressure control
▶Power control
▶Electro-proportional swivel angle control
▶Short response times

▶Sizes 10 to 100
▶Nominal pressure 250 bar

 ▶Maximum pressure 315 bar

▶Open circuit

Size 10 18 28 45 60 63 72 85 100
Version 10.5 18 28 45 60 63 72 85 100
Displacement
geometric, per revolution		   Vg max cm³
Nominal pressure   pnom bar 250 250 250 250 250 250 250 250 250
Maximum pressure   pmax bar 315 315 315 315 315 315 315 315 315
Maximum speed 1) at Vg max nnom rpm 3600 3300 3000 2600 2600 2600 2600 2) 2500 2300
Flow at Vg max and nnom qV nom l/min 37 59 84 117 156 163 187 212 230
at Vg max and n = 1500 rpm qV 1500 l/min 15 27 42 68 90 95 108 128 150
Power at qV nom and pnom P kW 16 25 35 49 65 68 77 89 96
at qV 1500 and pnom P 1500 kW 7 11 18 28 37 39 45 53 62
Torque at Vg max and pnom M Nm 42 71 111 179 238 250 286 338 398
Weight (approx.)   m kg 8 11.5 14 18 22 22 22 36 36
  Machine Hydraulci Pump/Motor
Construction Machinery
Concrete mixer AA2FM A4VTG EATON 5423
Concrete transport pump A2FO A4VG A11V
Wet spraying machine A11V A2FM A10V
Road roller A6VE A6VM  A4VTG P2VC
Paver A6VE A6VM  P2VC P4VC
Grader A6VM  P2VC
Asphalt spreader P1V(A)O A2FM
Milling machine P1V(A)O A2FE A2FM
Crawler excavator P3VO
Wheel excavator A6V A6VM  P3VO
Loader M3VE A6VM  P2VC A10VSO A2FM
Bulldozer A6VM  P2VC
Material Handling Machinery
Crane A2FE A6V A6VM P2VC P1V(A)O A10VSO A2FM
Forklift
Drilling Rig A2FE A6VE A6VM P1V(A)O A10VSO A2FM
Heading Machine A2FE P1V(A)O
Mining Truck A10VSO
Agricultural Machinery
Tractor A6VE P2VC P4VC A10VSO
 Rice Transplanter
Combine Harvester A6VE A4VTG P2VC
Pesticide machine A6VE A4VTG P2VC A10VSO
Rice harvester A6VE A4VTG P2VC P4VC
Sugar Cane Harvester A6VE P2VC P4VC A10VSO A2FM
Municipal Machinery
Airport Equipment A6VM P2VC P1V(A)C A10VSO A2FE A2FM
Firfighting Truck A7VO P1V(A)C A10VSO
Snow Sweeper P2VC A10VSO
Aerial work platform P4VC A10VSO
Electric Power A2FE A6VE P2VC P4VC
Environmental Sanitation Vehicle
Anti Dust Vehicle
Oil And Gas Equipment
Liquid Nitrogen Pump Truck P1V(A)O
Fracturing Truck A6VM P2VC A2FO A2FM
Fracturing Blender Truck A6VM P2VC A10VSO A2FM
Coil Tubing A10VSO A2FE
Pipelayer A2FE A6VM P1V(A)O
Industrial Application
Injection molding machine
Shoe-making machine A10VSO
Metal forming machinery A7V
CNC machine tool PV A10VSO
Metallurgy and die-casting E-A4VG
Flow Machine
Reach Stacker P3VO
Heavy Forlift A6VM A4VTG A10VSO
Tire Crane A6VM
Maritime Port
Ship A6VE A6VM P1V(A)O A10VSO A2FE A2FM
Offshore platform A6VE A6VM P1V(A)O A10VSO A2FE A2FM
Wind power P1V(A)O
Dredging vessels P1V(A)O
Others
Marine Crane A 11VLO A2FM FMF  A4VG A6VM
